Mikrotik cAP Dual-Chain 2.4GHz RouterOS L4 650MHz CPU RBcAP2nD
Καλέστε μας για διαθεσιμότητα και τιμή
Εξαντλημένο

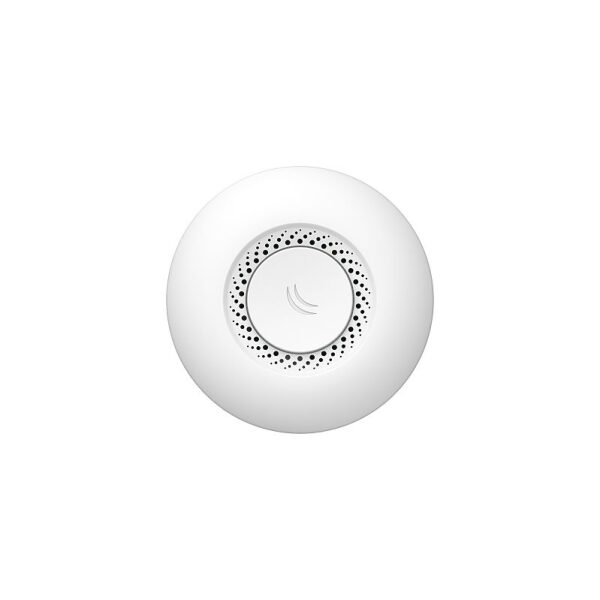

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
Product code | RBcAP2nD |
Architecture | MIPSBE |
CPU | QCA9533 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 185mm diameter, 31mm height |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2 |
Wireless 2.4 GHz chip model | QCA9533 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
10/100 Ethernet ports | 1 |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 4 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 11-57 V |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
Mode button | Yes |
Wireless Specifications
Frequency | Transmit (dBm) | Receive Sensitivity (dBm) |
---|---|---|
2.4 GHz | ||
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
Datasheet:
Βάρος | 0.400 κ. |
---|---|
Διαστάσεις | 3 × 24 × 18 cm |
