POE-at 802.3at PoE+ adapter compatible with PoE 802.3at standard for Ubiquiti, MikroTik and others.

Name: POE-at 802.3at PoE+ adapter compatible with PoE 802.3at standard for Ubiquiti, MikroTik and others.
SKU: 019738
Availability: InStock

Κωδικός Προϊόντος: 019738

€14.50

Άμεσα Διαθέσιμο

Σε απόθεμα

Add to wishlist

Περιγραφή

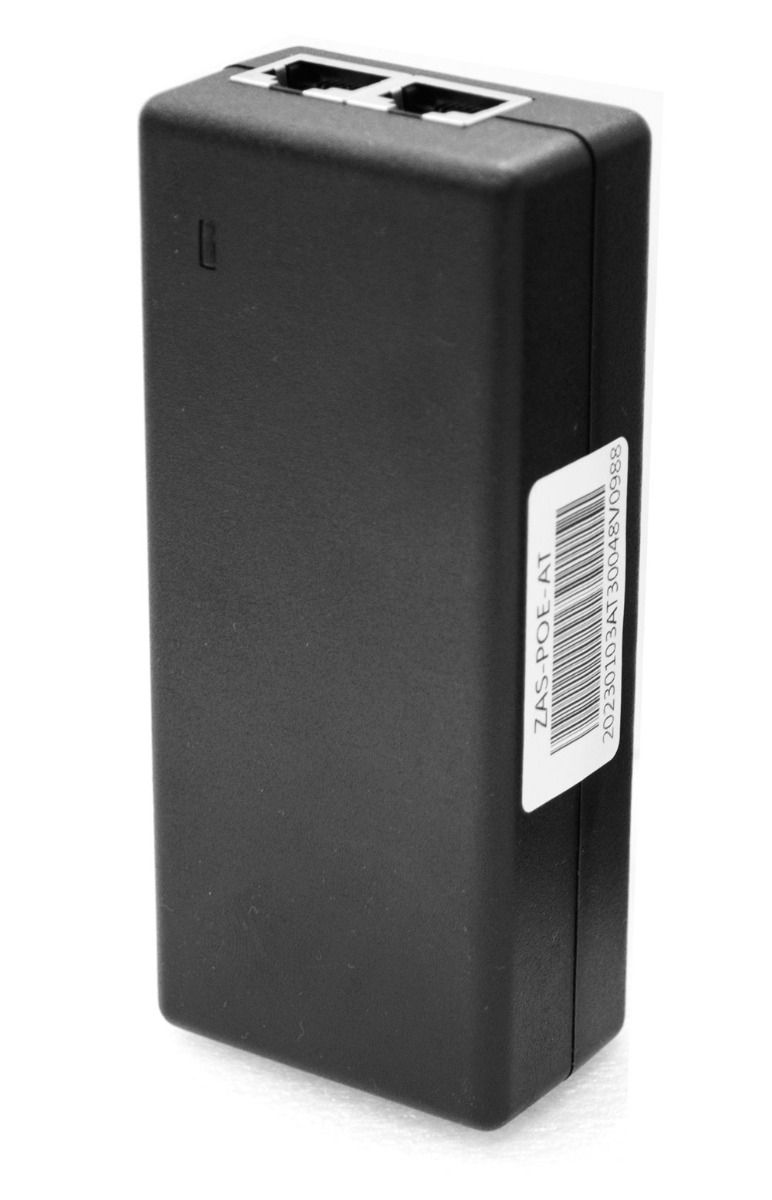

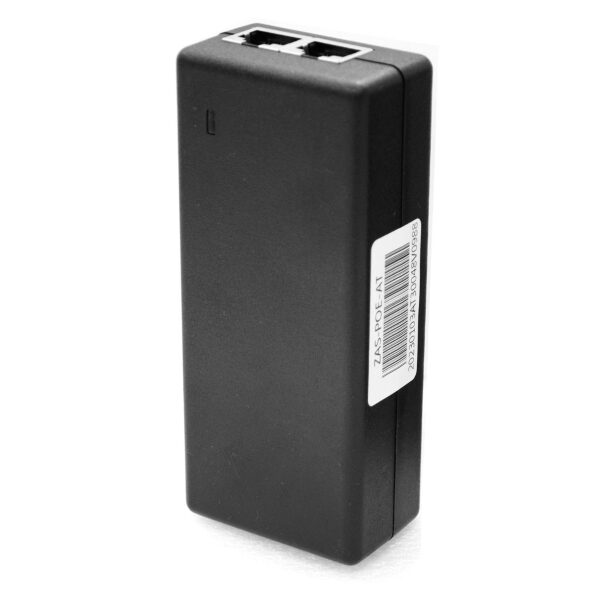

EVERCELL PoE adapter, 802.3AT (POE-at)

48V / 0,652A / 30W

Evercell PoE-AT is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the PoE-AT can be used to power Access Points, for example (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.

DC grounded
Surge protection
Gigabit ethernet
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground

Τεχνικά Χαρακτηριστικά

Output Voltage	48VDC @ 0.652A
Input Voltage	100-240VAC @ 50/60Hz
Input Current	600mA
Inrush Current	<100A Peak @ 26°C
Efficiency	87%
Output Ripple	1% max
Switching Frequency	70 kHz
Line Regulation	+/- 3,0%
Load Regulation	+/- 5,0%
Operating Temperature	0C to +40 deg C
Storage Temperature	-30 to +70 deg C
Operating Humidity	10 to 95% Noncondensing
Size	115mm x50 mm x 31 mm
AC Connector	IEC-320 C6

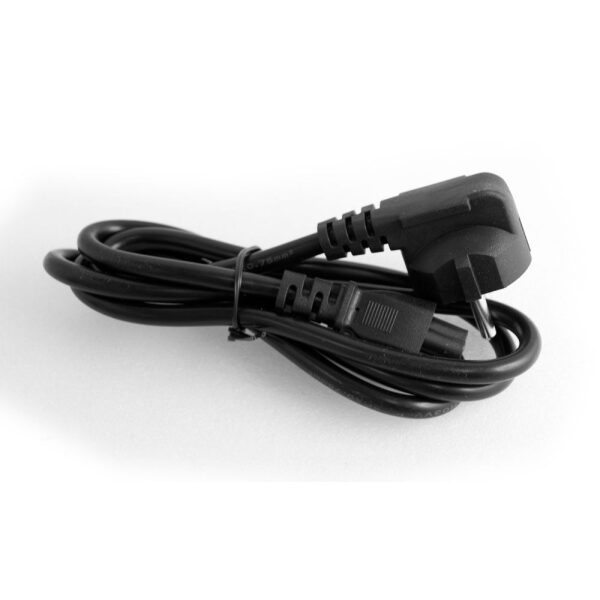

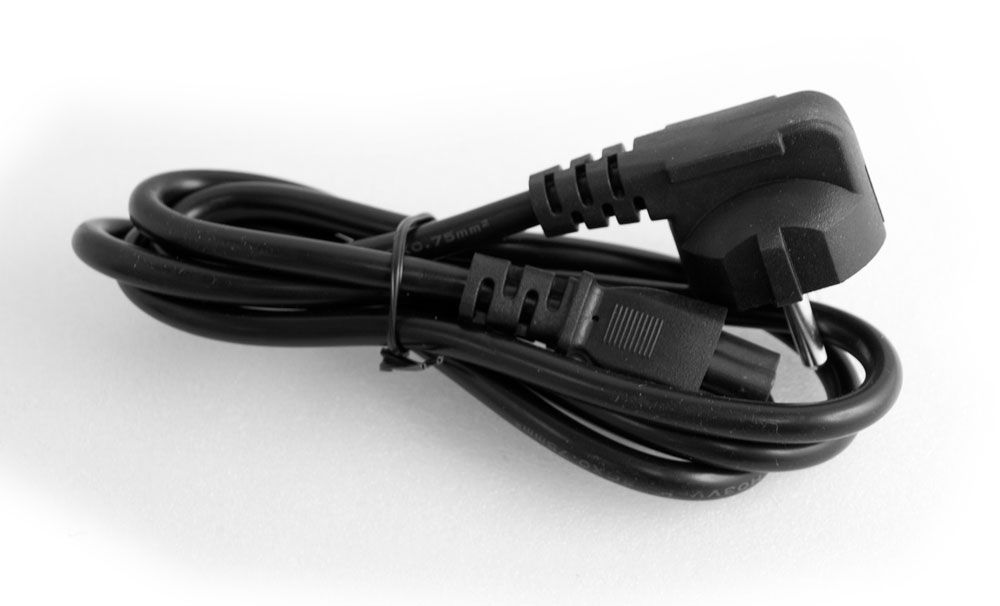

AC Power cord	included
Data IN / POE	RJ45 Shielded Socket
Activity Indicator	Detects if device is connected
