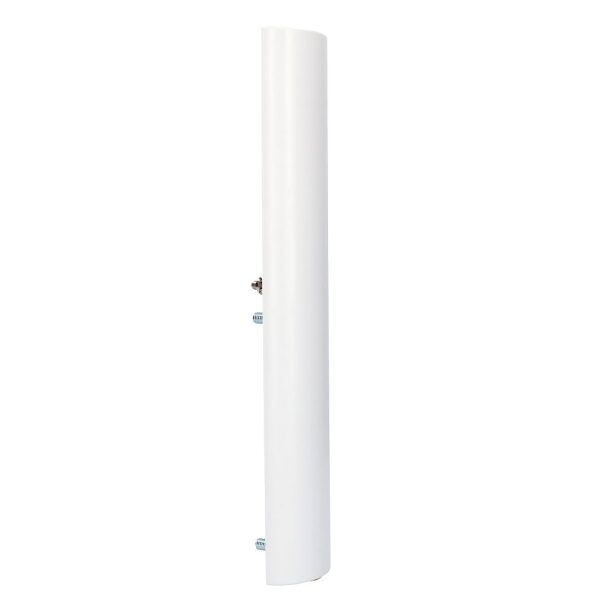

Ubiquiti AirMax Sector Antenna 16dBi 5G16-120 Antenna 5Ghz 120deg

Name: Ubiquiti AirMax Sector Antenna 16dBi 5G16-120 Antenna 5Ghz 120deg
SKU: 004336
Availability: InStock

Κωδικός Προϊόντος: 004336

€93.00

Άμεσα Διαθέσιμο

Σε απόθεμα

Περιγραφή

5 GHz, 120º, 16 dBi or 90º, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

2×2 dual-polarity performance

Robust mechanical design for outdoor application use

Compatible with Rocket Prism 5AC

Τεχνικά Χαρακτηριστικά

AM-5G16-120
Dimensions	367 x 63 x 41 mm (14.4 x 2.5 x 1.6″)
Weight	1.1 kg (2.4 lb)
Frequency Range	5.10 – 5.85 GHz
Gain	15.0 – 16.0 dBi
HPOL Beamwidth	137° (6 dB)
VPOL Beamwidth	118° (6 dB)
Electrical Beamwidth	8°
Electrical Downtilt	4°
Max. VSWR	1.5:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	26 N @ 160 km/h (6 lbf @100 mph)
Polarization	Dual-Linear
Cross-pol Isolation	22 dB Min.
ETSI Specification	EN 302 326 DN2

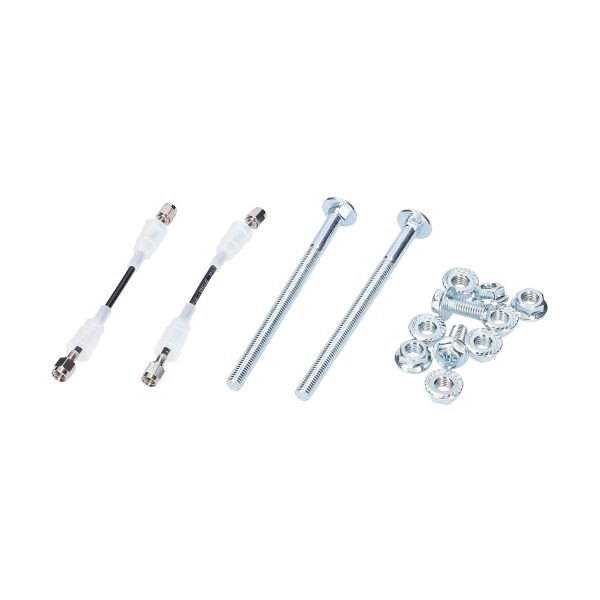

Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
