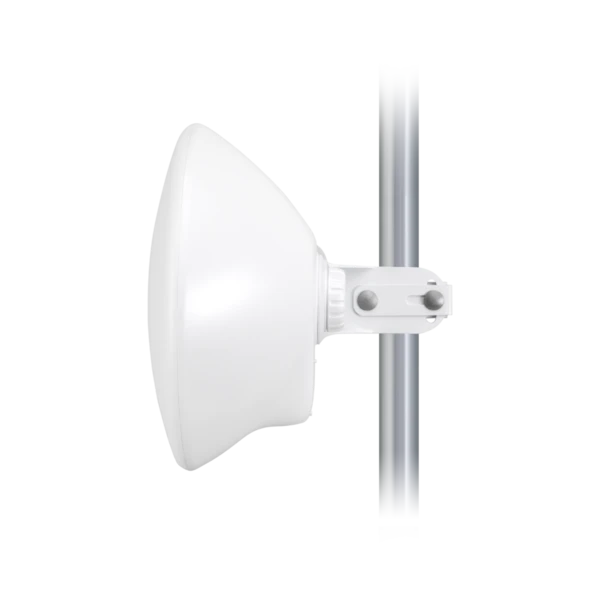

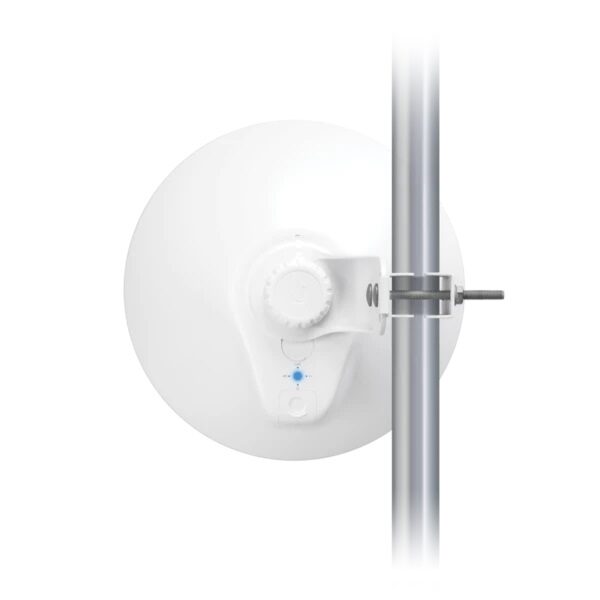

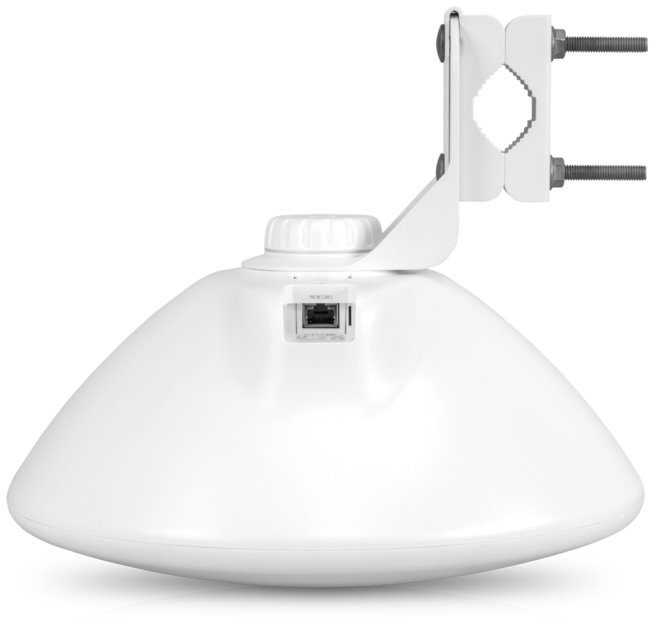

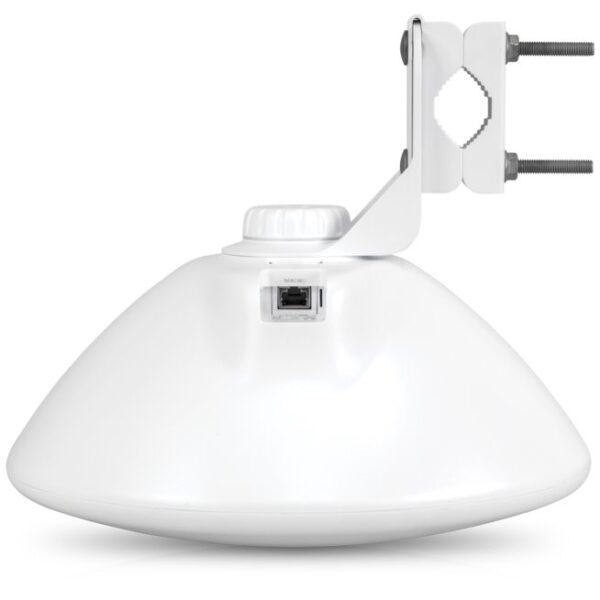

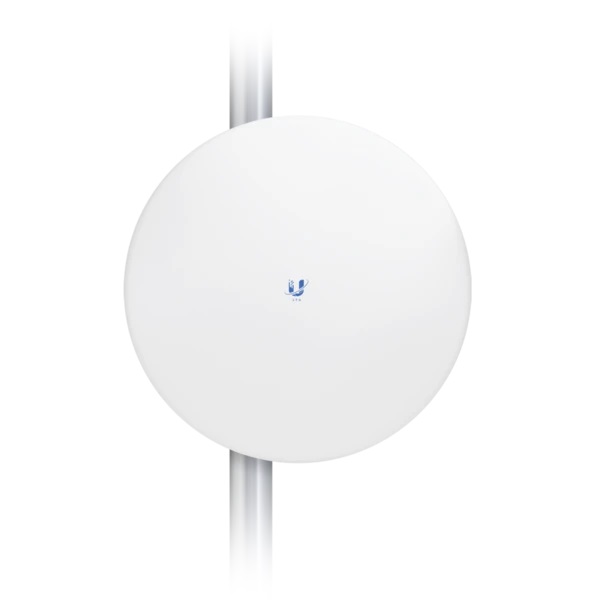

Ubiquiti LTU Pro PtMP 5Ghz Antenna gain 24dBi,Gigabit Lan OutDoor Client Radio 5GHz PtMP

Κωδικός Προϊόντος: 010118

225.00

Άμεσα Διαθέσιμο

Σε απόθεμα

Περιγραφή
5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

5 GHz, 25+ km link range

900+ Mbps throughput*

Dedicated spectral analysis radio

Integrated radome

Τεχνικά Χαρακτηριστικά
Dimensions 316.5 x 316.5 x 174.3 mm (12.5 x 12.5 x 6.9″)
Weight 1.3 kg (2.9 lb)
Enclosure material UV-stabilized polycarbonate
Mounting Pole mount (Kit included)
Wind loading 150 N at 200 km/h (33.72 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8- )
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 22–27V DC
Max. power consumption 9W
ESD/EMP protection Air/contact: ± 24kV
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Software
Modes PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware.
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Network Bridge/Router* mode
*Router mode is available in PtMP CPE mode only.
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser
iOS™ or Android™ based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

EU

Worldwide

5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz

2400 – 2483.5 MHz
5150 – 5875 MHz

2400 – 2483.5 MHz
4800 – 6200 MHz
*Depends on regulatory region.

Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 24 dBi
Beamwidth 14°
Sidelobe level -10 dB
Front-to-back ratio 27 dB
